RPM Sensors

RPM sensors typically use different types of wiring depending on their technology and application. However, most RPM sensors, such as Hall effect, optical, or inductive sensors, generally have the following connection:

../../_images/rpm_sensors_diagram.png

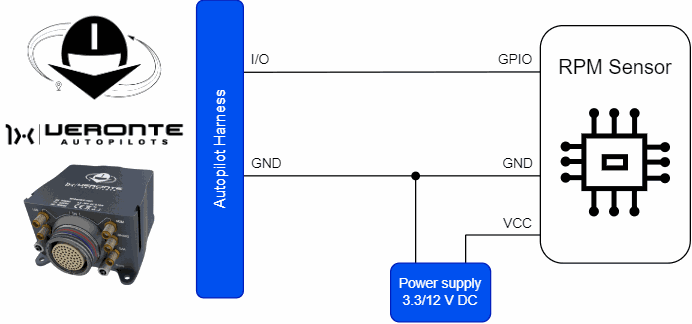

RPM Sensors - Autopilot 1x wiring diagram

RPM sensor must be connected to one of the available I/O pins of Autopilot 1x.

../../_images/pinout_harness.png

Autopilot 1x harness pinout

Autopilot 1x harness

PIN

Signal

Color code

1

I/O0

White

2

I/O1

Brown

3

I/O2

Green

4

I/O3

Yellow

5

I/O4

Gray

6

I/O5

Pink

7

I/O6

Blue

8

I/O7

Red

9

GND

Black

10

I/O8

Violet

11

I/O9

Gray-Pink

12

I/O10

Red-Blue

13

I/O11

White-Green

14

I/O12

Brown-Green

15

I/O13

White-Yellow

16

I/O14

Yellow-Brown

17

I/O15

White-Gray

55

EQEP_A

White-Black

56

EQEP_B

Brown-Black

57

EQEP_S

Gray-Green

58

EQEP_I

Yellow-Green

59

GND

Pink-Green

Once the hardware installation is complete, to properly integrate the device with Autopilot 1x follow the steps detailed in the RPM Sensors - Integration examples section of the 1x PDI Builder user manual.
